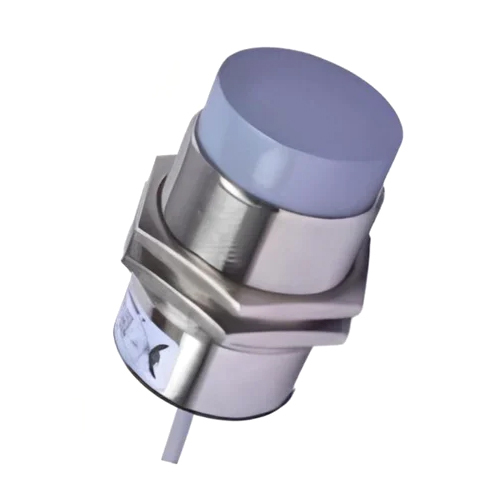

The Body Lifting Alarm for Truck and Dumper is a commercial-grade device that is specially designed for the automotive industry. Made from high-quality PVC material, this alarm features a normal sensor type that is perfect for monitoring the lifting of truck and dumper bodies. This device can detect any sudden movements or changes in the bodys position and immediately alerts the driver or operator through an alarm. With its robust construction and reliable performance, this alarm ensures the safety of the workers and the vehicle while avoiding any potential damage or accidents. This product is an essential addition to any truck or dumper that is used for heavy-duty lifting and transportation.
Dimension(Dia X pitch X Length) mm
|
50x1.5x80
|
Housing Material
|
Nickel plated Brass
|
Mounting Type
|
Non Flush
|
Supply Voltage
|
10-30V DC
|
Output Current
|
300mA
|
Range-(Sensing Distance)
|
25 mm
|
Hysteresis
|
15%
|
Type
|
PNP
|
Output Logic
|
NC
|
No Load Current
|
< 13 mA
|
Voltage Drop
|
< 2.5 Volt
|
Switching Frequency
|
50Hzs
|
Operating Temperature
|
-10 to +80 Degree Celsius
|
Cable Length
|
2 Meters
|
IP Protection class
|
IP 68
|
Short Circuit & Reverse Polarity Protection
|
Not Provided
|
Compliance
|
IEC 60529:2013
|
Connection Details
|
Supply 10-30VDC between R and B
|
FAQs of Body Lifting Alarm For Truck And Dumper:
Q: What is the Body Lifting Alarm for Truck and Dumper made of?
A: The Body Lifting Alarm for Truck and Dumper is made from high-quality PVC material.
Q: What type of sensor does this alarm feature?
A: This alarm features a normal sensor type that is perfect for monitoring the lifting of truck and dumper bodies.
Q: What is the main purpose of this alarm?
A: The main purpose of this alarm is to detect any sudden movements or changes in the bodys position and immediately alert the driver or operator through an alarm.
Q: Is this alarm suitable for heavy-duty lifting and transportation?
A: Yes, this alarm is suitable for heavy-duty lifting and transportation and is an essential addition to any truck or dumper used for these purposes.
Q: Does this product come with a warranty?
A: Yes, the Body Lifting Alarm for Truck and Dumper comes with a warranty provided by the manufacturer/supplier.
